Introduction:

In the realm of network security, firewalls stand as a critical first line of defense against cyber threats. This lab focuses on understanding and configuring firewalls, with a particular emphasis on iptables, a powerful host-based firewall for Linux systems.

Firewalls serve as gatekeepers, controlling the flow of network traffic based on predetermined security rules. They can be network-based, host-based, or a combination of both, each with its own strengths and use cases. As we progress through this lab, we'll explore various types of firewalls, from basic packet-filtering firewalls to more advanced next-generation firewalls (NGFW).

We'll begin by examining the fundamental concepts of firewall operation, including the differences between network-based and host-based firewalls. We'll then delve into the evolution of firewall technology, discussing packet-filtering, stateful, application layer, and next-generation firewalls.

The core of this lab will focus on iptables, a versatile host-based firewall included in most Linux distributions. We'll explore its structure, including its three main policy chains: Input, Output, and Forward. Through hands-on exercises, participants will learn how to create and manage iptables rules, gaining practical experience in configuring a host-based firewall.

By the end of this lab, participants will have a solid understanding of:

  • The role and importance of firewalls in network security
  • Different types of firewalls and their capabilities
  • Basic concepts of firewall rule creation and management
  • Practical skills in configuring iptables on a Linux system

This knowledge will provide a strong foundation for implementing effective firewall strategies in various network environments.

Lab Questions and Answers: 1.1 Core Concepts

1. What is a firewall? (Choose all that apply)

(select all that apply)

A. A security control.

B. A way to prevent all attacks.

C. A way to reduce the attack surface of a network.

D. A device to allow access to resources.

Answer: A, C, D

2. What are valid types of firewalls? (Choose all that apply)

(select all that apply)

A. Packet-filtering

B. Host-based

C. Stateful

D. Application layer

E. Network-based

Answer: A, B, C, D, E

3. What do Next-Generation Firewalls often include? (Choose all that apply)

(select all that apply)

A. Antivirus

B. Deep packet inspection

C. Intrusion Prevention

D. Vulnerability scanning

Answer: A, B, C

4. What is true about the IPTables firewall? (Choose all that apply)

(select all that apply)

A. IPTables is made up of three policy chains.

B. IPTable rules are read from top to bottom.

C. The output chain determines what traffic can come into the host.

D. IPTables is only host based.

Answer: A, B

Lab Questions and Answers: 1.2 Guided Exercise

1. What would the iptables command be to allow 10.0.0.3 access to port 4444 on the lab server? (Chose one)
A. sudo iptables -A INPUT -s 10.0.0.0 -p tcp --dport 4444 -j ACCEPT
B. sudo iptables -A INPUT -s 10.0.0.3 -p tcp --dport 444 -j ACCEPT
C. sudo iptables -A INPUT -s 10.0.0.3 -p tcp --dport 4444 -j ACCEPT
D. sudo iptables -A INPUT -s 10.0.0.3 -p tcp --dport 4444 -j ALLOW

Answer: C

2. If you added a new rule to the existing iptables INPUT chain, what would happen?
A. The rule would be appended to the bottom of the INPUT chain and work as expected.
B. The rule would be appended to the bottom of the INPUT chain and be blocked by the DROP ALL rule.
C. The rule would be appended to the top of the INPUT chain and work as expected.

Answer: B

3. When editing the IPTables Rules file to allow 10.0.0.2 access to SSH, which of the following would be the correct line(s) to put the rule?
(select all that apply)
A. 1
B. 2
C. 3
D. 4
E. 5

Answer: A, B

Hint: Look for the rules that has SSH.

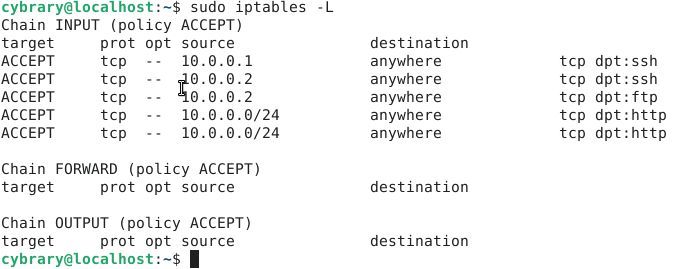

4. After editing the IPTables Rules file to eliminate the unnecessary DROP rules, how many lines remain?
Answer: 5
Hint: Count the total remaining rules stayed after removing the DROP rules.

Lab Questions and Answers: 1.3 Challenge Exercise

1. How many rules did you need for this ruleset?
Answer: 3
Hint: Ignore ports 22 and 3398
2. What was the rule for the lower TCP port?
A. sudo iptables -A INPUT -s 10.0.0.1 -p tcp –dport 1234 -j ACCEPT
B. sudo iptables -A INPUT -s 10.0.0.1 -p tcp –dport 444 -j DROP
C. sudo iptables -A INPUT -s 10.0.0.1 -p tcp –dport 444 -j ACCEPT
D. sudo iptables -A INPUT -s 10.0.0.1 -p tcp –dport 444 -j ALLOW

Answer: C
Hint: Craft the rule according to the lower port as port 22 told to be ignored so 444.

3. What was the rule for the higher TCP port?
A. sudo iptables -A INPUT -s 10.0.0.1 -p tcp --dport 1234 -j ACCEPT
B. sudo iptables -A INPUT -s 10.0.0.2 -p tcp --dport 444 -j ACCEPT
C. sudo iptables -A INPUT -s 10.0.0.2 -p tcp --dport 1234 -j ALLOW
D. sudo iptables -A INPUT -s 10.0.0.2 -p tcp --dport 1234 -j ACCEPT

Answer: D

Conclusion

In this exercise, we successfully configured an iptables firewall to manage network access for two clients within a controlled environment. The primary objective was to allow specific access to designated TCP ports while ensuring that unauthorized traffic was effectively blocked. This configuration effectively enforced access control, ensuring that each client could only access the resources necessary for their role. By focusing exclusively on relevant ports and services, we minimized potential vulnerabilities and enhanced the overall security of the network environment. This exercise highlights the critical role of firewalls in protecting sensitive information and maintaining network integrity.
