Hello again, in this guide, we’ll explore how to create a network using Cisco Packet Tracer, configure subnetting, and implement Access Control Lists (ACLs) to manage communication between subnets.
Introduction to Cisco Packet Tracer
Cisco Packet Tracer is a powerful network simulation tool designed for students, educators, and networking professionals. It allows users to create complex network topologies, configure devices, and visualize the network’s behavior without needing physical hardware.
Creating a Network with Subnetting
Step 1: Set Up the Network Topology
- Open Cisco Packet Tracer.
- Drag and drop the required network devices (e.g., routers, switches, PCs) onto the workspace.
- Connect the devices using appropriate cables (e.g., copper straight-through for different devices, crossover for similar devices).
Step 2: Configure the IP Addresses and Subnets
For this example, let’s create a network with two subnets:
- Access the router’s CLI:
Router> enable Router# configure terminal
2. Configure the interfaces:
Router(config)# interface GigabitEthernet0/0 Router(config-if)# ip address 192.168.10.1 255.255.255.0 Router(config-if)# no shutdown Router(config-if)# exit Router(config)# interface GigabitEthernet0/1 Router(config-if)# ip address 192.168.20.1 255.255.255.0 Router(config-if)# no shutdown Router(config-if)# exit

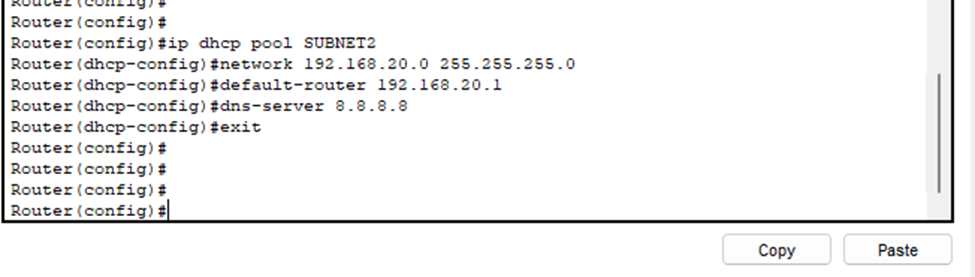

Router(config)# ip dhcp pool SUBNET_A Router(dhcp-config)# network 192.168.10.0 255.255.255.0 Router(dhcp-config)# default-router 192.168.10.1 Router(dhcp-config)# exit Router(config)# ip dhcp pool SUBNET_B Router(dhcp-config)# network 192.168.20.0 255.255.255.0 Router(dhcp-config)# default-router 192.168.20.1 Router(dhcp-config)# exit
Step 3: Configure End Devices

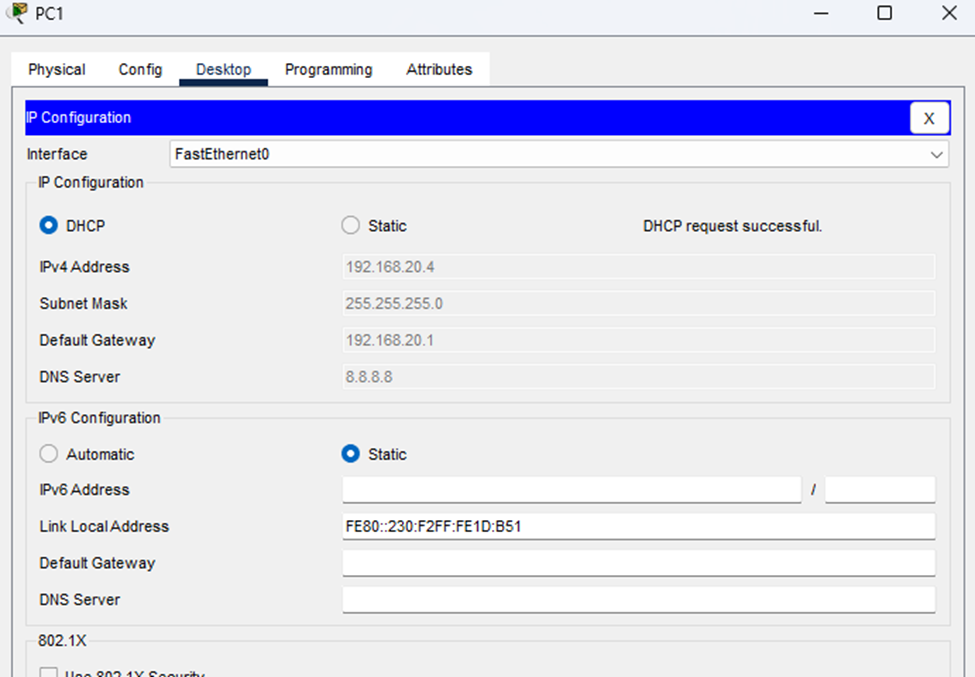

Assign IP addresses via DHCP to PCs:
- PC1 (Subnet A): Set to DHCP
- PC2 (Subnet B): Set to DHCP
Ensure DHCP is enabled on both PCs and connect them to their respective subnets.

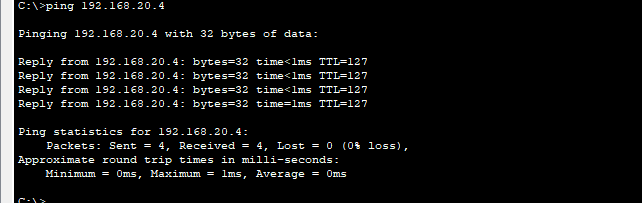

Test connectivity:
- Use the
ping
command to test communication between devices in different subnets.
At this stage, the network is configured such that devices in different subnets can communicate with each other freely. This setup is suitable for environments where unrestricted communication is necessary.
Implementing ACLs for Network Isolation
To isolate subnets and control traffic flow, we will implement ACLs.
Step 1: Define the ACLs
Access the router's CLI:
Router> enable Router# configure terminal
Create an ACL to deny traffic between subnets:
Router(config)# access-list 100 deny ip 192.168.10.0 0.0.0.255 192.168.20.0 0.0.0.255 Router(config)# access-list 100 permit ip any any
Step 2: Apply the ACL to the Router Interfaces
Apply the ACL to the inbound direction of the relevant interface:
Router(config)# interface GigabitEthernet0/0 Router(config-if)# ip access-group 100 in Router(config-if)# exit Router(config)# interface GigabitEthernet0/1 Router(config-if)# ip access-group 100 in Router(config-if)# exit
2. Test connectivity:
- Use the
ping
command to verify that devices in different subnets cannot communicate with each other.
Verify Configuration:
Check ACLs:
Router# show access-lists
Check Interface ACL Application:
Router# show ip interface gigabitEthernet0/0 Router# show ip interface gigabitEthernet0/1
The .pkt file can be downloaded here --> GitHub
Conclusion
In this guide, we've covered setting up a network using Cisco Packet Tracer, configuring subnetting, implementing DHCP for dynamic IP address assignment, and using ACLs to manage subnet communication. DHCP configuration ensures devices in each subnet receive IP addresses dynamically, streamlining network administration. Meanwhile, ACLs provide crucial subnet isolation, bolstering network security and governance. Mastery of these tools is essential for network administrators aiming to build robust, efficient, and secure networks. This is mr1diot signing off. Happy networking!
